SAE Tap and Die 38PC PACKOUT™ Set - High Carbon Steel

49225604

SAE Tap and Die 38PC PACKOUT™ Set - High Carbon Steel

49225604

Promotions

PACKOUT™ Large Tool box

48228425

Spend $750 incl. GST on selected PACKOUT™ Solutions* and redeem the above product.

*PACKOUT™ spend excludes M18™ and M12™ PACKOUT™ products.

For more details and applicable T&Cs, visit our Redemptions page.

Redeem Now

PACKOUT™ Low Profile Rolling Tool Box

48228427

Spend $1,000 incl. GST on selected PACKOUT™ Solutions* and redeem the above product.

*PACKOUT™ spend excludes M18™ and M12™ PACKOUT™ products.

For more details and applicable T&Cs, visit our Redemptions page.

Redeem Now

Features

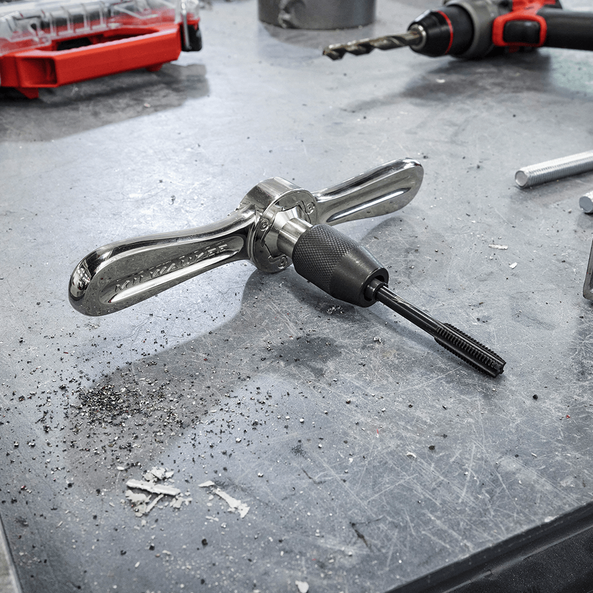

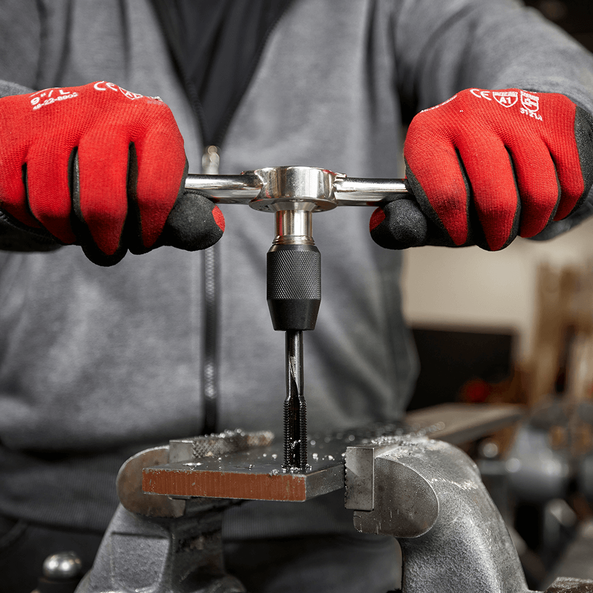

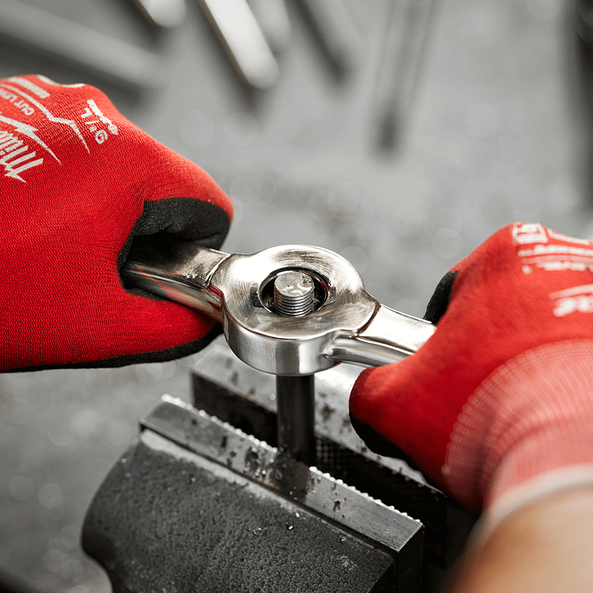

Hex-LOK™ 2-in-1 Handle is the most versatile threading solution designed for tap and die threading

Hex-LOK™ 2-in-1 Handle is compatible with 1” hex dies & MILWAUKEE Tap Collet

Taps and dies feature long lasting laser etch for clear markings

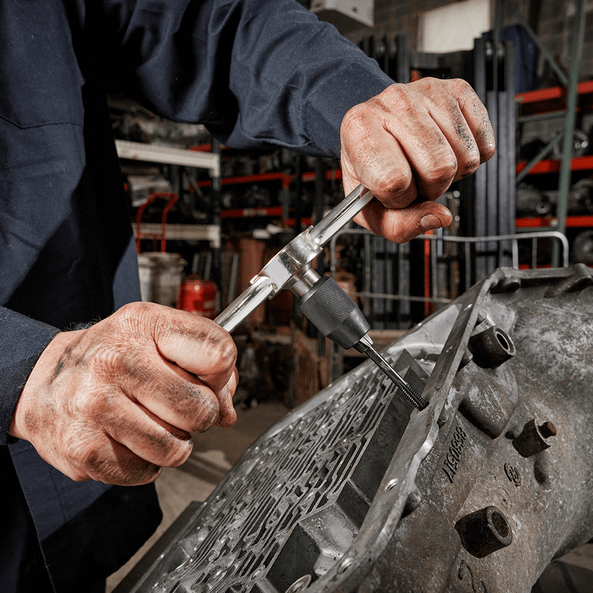

Plug Style tap is designed for through hole threading

Designed for use in metal materials including brass, aluminum, mild steel, and more

Hex-LOK™ 2-in-1 Handle is covered under a limited lifetime warranty

2-in-1 Handle compatibility allows for easy snap in and out, tool-free die and collet changes

Black Oxide coated taps and dies for corrosion resistance

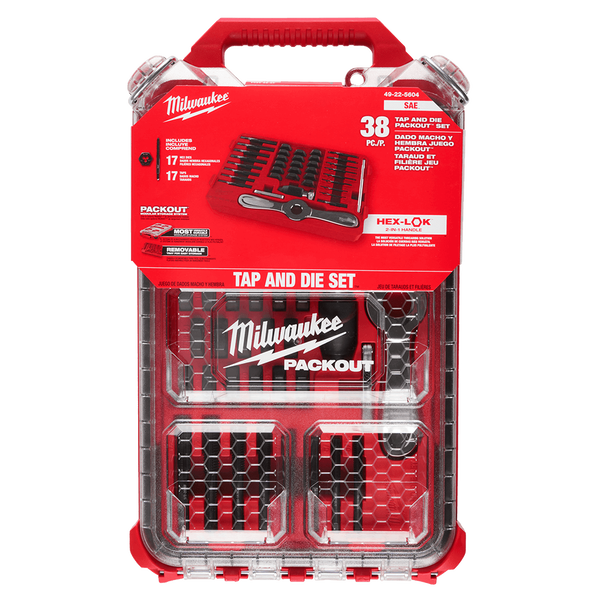

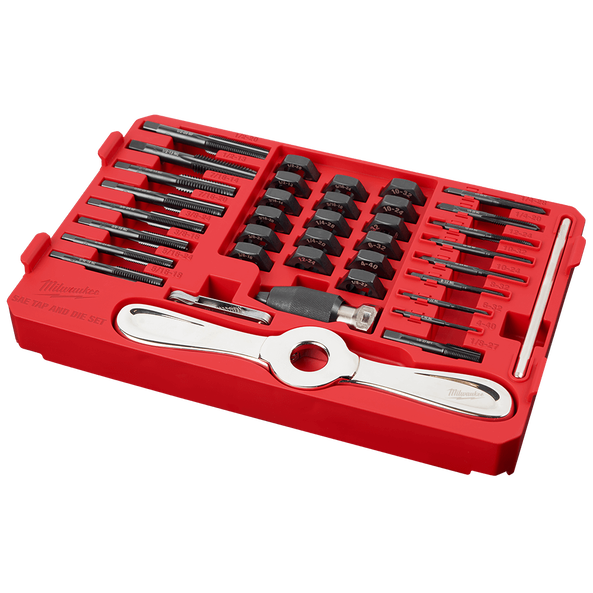

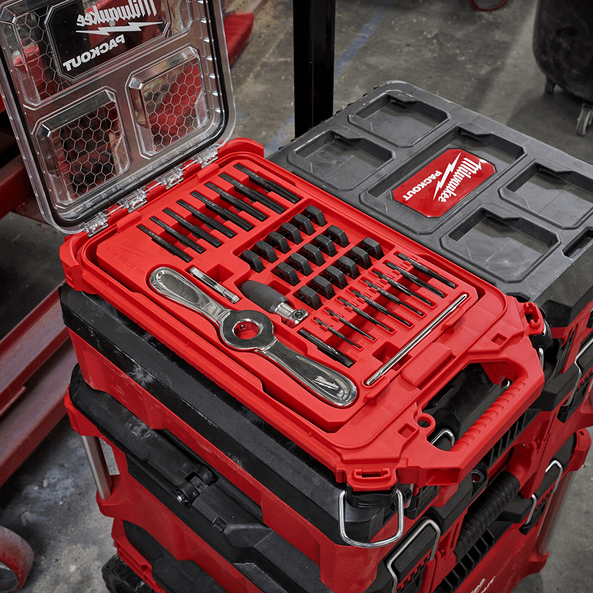

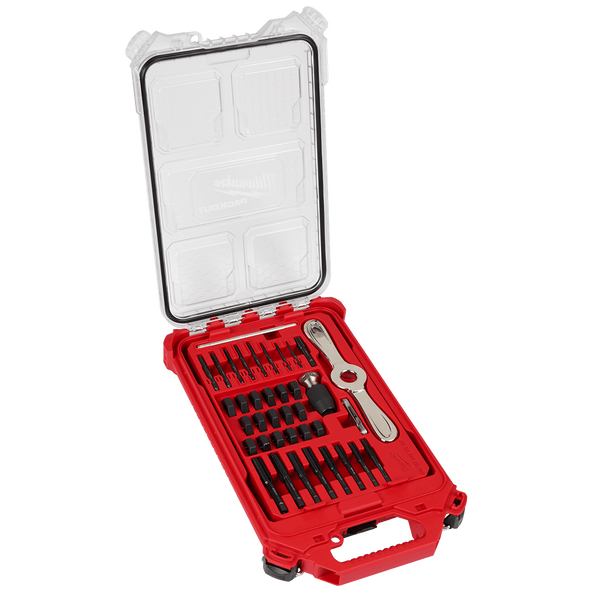

The set is organized in a PACKOUT™ Low-Profile Compact Organizer and includes a removable storage tray

Product Summary

The MILWAUKEE 38-Piece SAE Tap & Die PACKOUT™ Set includes precision machined threading accessories and a versatile Hex-LOK™ 2-in-1 Handle for the most common applications. The set features 17 straight-flute taps and 17 1” hex dies with long-lasting laseretched sizing for clear markings and includes a protective Black Oxide coating for corrosion resistance. The Hex-LOK™ 2-in-1 Handle combines the benefit of both internal and external threading within one handle by its compatibility with both 1” hex dies and the MILWAUKEE tap collet. The handle’s ergonomic grip is designed to deliver ultimate user comfort while cutting threads. The all-metal construction allows for tool-free die and tap collet changes and is optimised for maximum balance and control when threading. The Plug Taps square shank is compatible with all standard tap handles or tap wrenches and is designed for through-hole threading. The Hex Dies 1” hex shape is compatible with the Hex-LOK™ 2-in-1 Handle, as well as all standard 1” Hex Die stocks. Our Taps and Dies are designed for cutting threads in the most common metal applications including brass, aluminum, mild steel, and more. For best results, use with cutting fluid. The set is organised in a PACKOUT™ Low-Profile Compact Organizer and includes a removable storage tray for versatile storage.

Specifications

Platform PACKOUT™

Material Black Oxide

Length 416mm

Width 248mm

Height 64mm

Weight 2.5kg

Application General Purpose - Metal

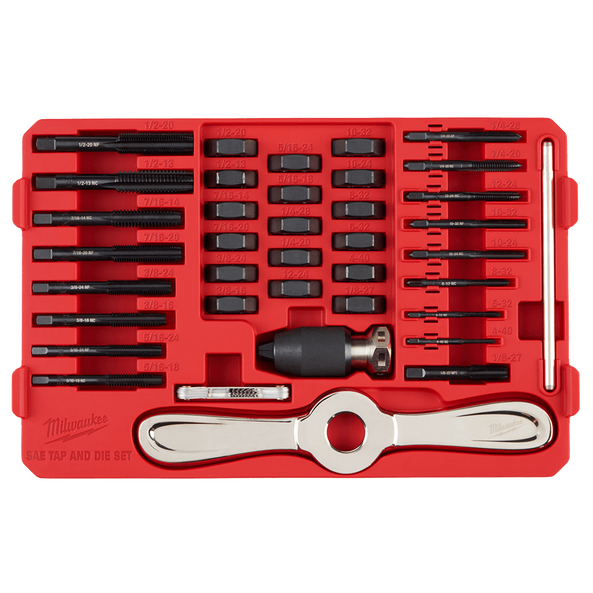

What's Included

SAE Thread Pitch Gauge 8-44 TPI

49575011

4-40 NC PLUG TAP

49575108

6-32 NC PLUG TAP

49575115

8-32 NC PLUG TAP

49575121

10-24 NC PLUG TAP

49575125

10-32 NF PL

G TAP

49575127

12-24 NC PLUG TAP

49575130

1/4-20 NC PLUG TAP

49575134

1/4-28 NF PLUG TAP

49575138

5/16-18 NC PLUG TAP

49575142

5/16-24 NF PLUG TAP

49575144

3/8-16 NC PLUG TAP

49575148

3/8-24 NF PLUG TAP

49575151

7/16-14 NC PLUG TAP

49575155

7/16-20 NF PLUG TAPS

49575156

1/2-13 NC PLUG TAPS

49575161

1/2-20 NF PLUG TAP

49575162

1/8-27 NPT TAPER TAP

49575189

4-40 NC HEX DIE

49575308

6-32 NC HEX DIE

49575315

8-32 NC HEX DIE

49575321

10-24 NC HEX DIE

49575325

10-32 NF HEX DIE

49575327

12-24 NC HEX DIE

49575330

1/4-20 NC HEX DIE

49575334

1/4-28 NF HEX DIE

49575338

5/16-18 NC HEX DIE

49575342

5/16-24 NF HEX DIE

49575344

3/8-16 NC HEX DIE

49575348

3/8-24 NF HEX DIE

49575351

7/16-14 NC HEX DIE

49575355

7/16-20 NF HEX DIE

49575357

1/2-13 NC HEX DIE

49575360

1/2-20 NF HEX DIE

49575362

1/8-27 NPT HEX DIE

49575389

Tap Collect

Sliding T-Handle

Hex-LOK 2-IN-1 Handle
