Learn more on MX FUEL™

CABLE DRIVE™ Assembly for M18™ Compact Drum Machine

47532816
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 168ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

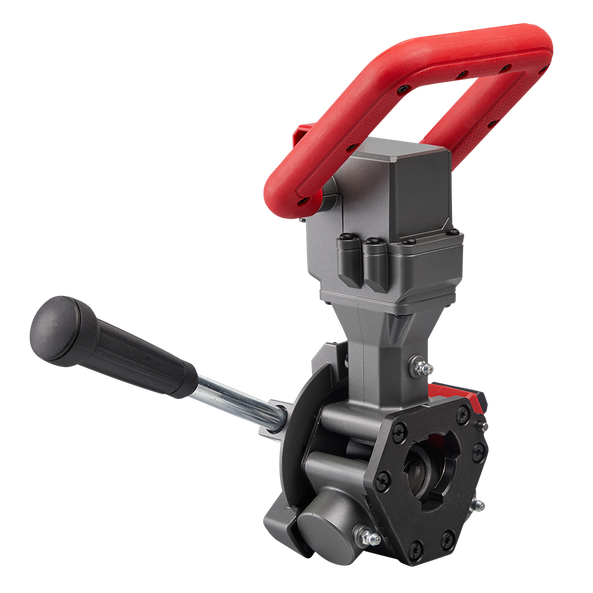

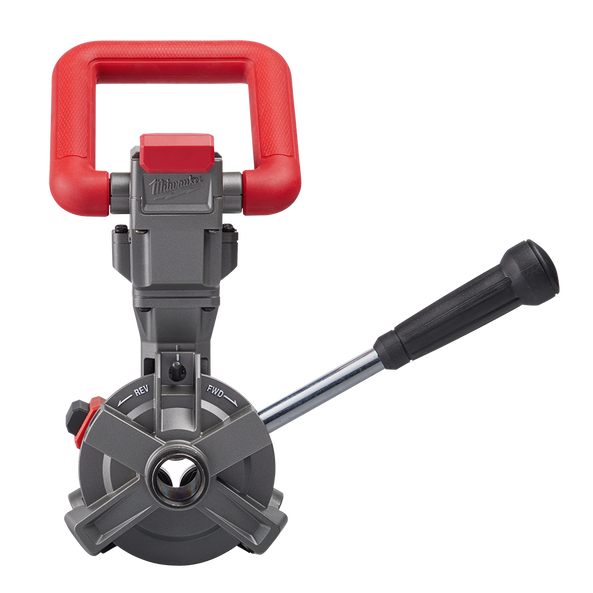

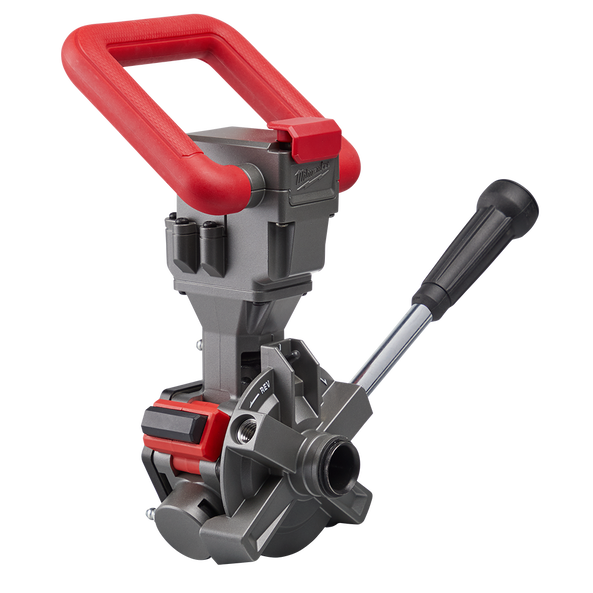

CABLE DRIVE™ Assembly for M18™ Compact Drum Machine, , hi-res
CABLE DRIVE™ Assembly for M18™ Compact Drum Machine, , hi-res
CABLE DRIVE™ Assembly for M18™ Compact Drum Machine, , hi-res

CABLE DRIVE™ Assembly for M18™ Compact Drum Machine

47532816
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 168ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

The CABLE DRIVE™ Assembly for the M18™ Brushless Compact Drum Machine (47532816) provides you with the ability to automatically feed and retract cables through 32 mm to 101 mm (1-1/4" to 4"), at up to 4.5 - 6 metres per minute. The ratcheting lever automatically adjusts for the 9.5 mm and 12.7 mm inner core drain cleaning cables. The RAPID STOP™ release of steel bearings provides a quick way to release the cable once the blockage is reached, preventing the cable from binding. The twist-lock feature allows the CABLE DRIVE™ Assembly to be easily swapped between drums for maximum efficiency.

Read More
Specifications What's Included Resources Reviews Related

Specifications

Features

Features

Compatible with the M18™ Brushless Compact Drum Machine
Ratcheting lever automatically adjusts to the cable diameter
Allows for manual feeding and retracting of cable if needed
Twist lock attachment allows for CABLE DRIVE™ assembly to Be Easily Removed
Feeds and retracts cable up to 4.5 to 6 metres per minute
Steel bearings for increased durability

Specifications

Specifications

Platform M18™
Length 108mm
Width 266mm
Height 311mm
Weight 2.3kg

What's Included

What's Included

(1) Cable Drive Assembly [47532816]
(1) Cable Drive Mounting Plate
