M12 FUEL™ 1/4" Sub-Compact Impact Wrench (Tool Only)

M12FSCIWF140
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 210ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Coming Soon
M12 FUEL™ 1/4" Sub-Compact Impact Wrench (Tool Only), , hi-res
M12 FUEL™ 1/4" Sub-Compact Impact Wrench (Tool Only), , hi-res
M12 FUEL™ 1/4" Sub-Compact Impact Wrench (Tool Only), , hi-res
M12 FUEL™ 1/4" Sub-Compact Impact Wrench (Tool Only), , hi-res
M12 FUEL™ 1/4" Sub-Compact Impact Wrench (Tool Only), , hi-res
M12 FUEL™ 1/4" Sub-Compact Impact Wrench (Tool Only), , hi-res

M12 FUEL™ 1/4" Sub-Compact Impact Wrench (Tool Only)

M12FSCIWF140
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 210ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

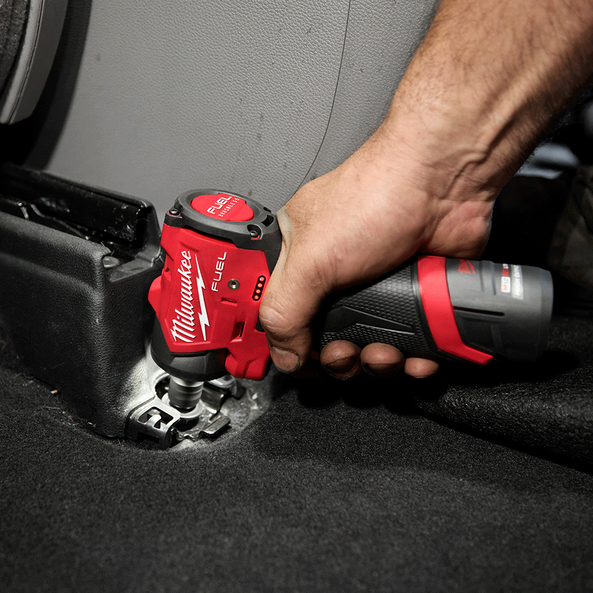

The M12 FUEL™ 1/4” Sub-Compact Impact Wrench delivers maximum underhood access for all automotive applications. Measuring in at 112 mm in length and 51 mm in width, the M12FSCIWF14 fits into the tightest spots, minimising the time spent on removing additional components under the hood. Leveraging the POWERSTATE Brushless Motor, the M12FSCIWF14 delivers up to 135 Nm of Nut-Busting Torque and up to 95 Nm of Fastening torque while weighing only 0.68 kg. The M12FSCIWF14 has a variable speed trigger with 4-Mode DRIVE CONTROL, which offers a greater precision of power output, including AUTO SHUT-OFF that limits torque to 10 Nm for hand-tight applications, preventing overtightening in forward mode. The bolt removal mode slows down the RPM once the bolt is free, preventing fastener drops in the workspace. Single-handed mode change capability delivers increased productivity, making the M12FSCIWF14 a comprehensive solution for all automotive professionals.

Read More
Specifications What's Included Resources Reviews

Specifications

Features

Features

Delivers up to 135Nm of Nut-Busting torque and up to 95Nm of fastening torque in a total tool length of 112mm.
4-Mode DRIVE CONTROL provides greater control over output speed and power.
Designed for maximum underhood access in a lightweight 0.68kg build, offering precision operation in tight fastening and loosening tasks.
Single handed mode change capabilities delivers increased productivity by freeing up users' second hand.
A complementary unit to the M12 FUEL™ Stubby Range that offers a shorter, slimmer and lighter weight design, allowing for greater manoeuvrability and control in tight spaces without compromising power.

Specifications

Specifications

Platform M12 FUEL™
Anvil Type 1/4” Square w/ Friction Ring
Nut Busting Torque 135Nm
Fastening Torque 95Nm
IPM 0 – 1,350 / 0 – 3,700 / 0 – 4,400 / 0 – 4,400
RPM 0 – 1,500 / 0 – 2,900 / 0 – 3,800 / 0 – 3,800
Drive Control 4 Mode w/ Auto Shut-Off Mode
Dimensions 112 x 51mm
Weight 0.68kg
Warranty 5 Years
Tri-LED Yes

What's Included

What's Included

(1) M12 FUEL™ 1/4” Sub-Compact Impact Wrench [M12FSCIWF140]
(Not Included) Battery and Charger
