M12 FUEL™ 18 Gauge Compact Brad Nailer (Tool Only)

M12FCN18GS0C
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 155ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';

M12 FUEL™ 18 Gauge Compact Brad Nailer (Tool Only)

M12FCN18GS0C
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 155ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Promotions
Summer Frenzy On Now
Offer Image
Summer Frenzy On Now
Spend and Redeem a Milwaukee Product Bundle*
Worth up to $1,020 RRP
Promo Dates: 1st December - 31st December 2025

*Spend $1,500 or $3,000 in one transaction on any Milwaukee product between the 1st and 31st of December 2025, from any Authorised dealer and redeem the corresponding Milwaukee product bundle.

T&Cs apply.

What's Included

Features

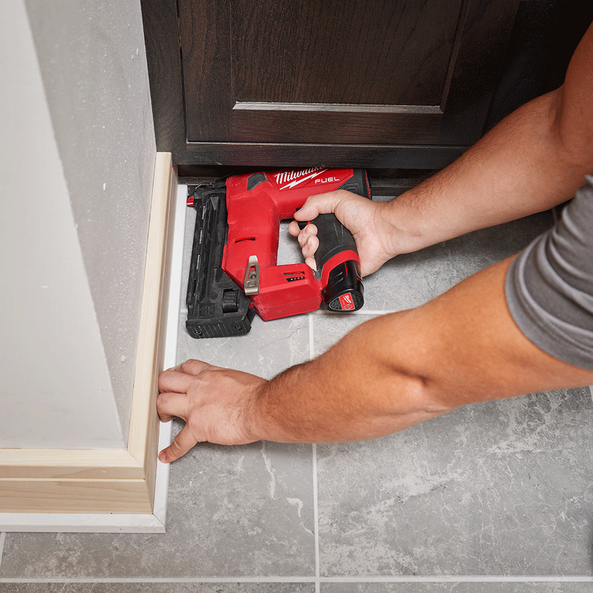

Compact size and ergonomic design allows for enhanced accessibility in confined spaces
Power to consistently nail in softwoods and hardwoods

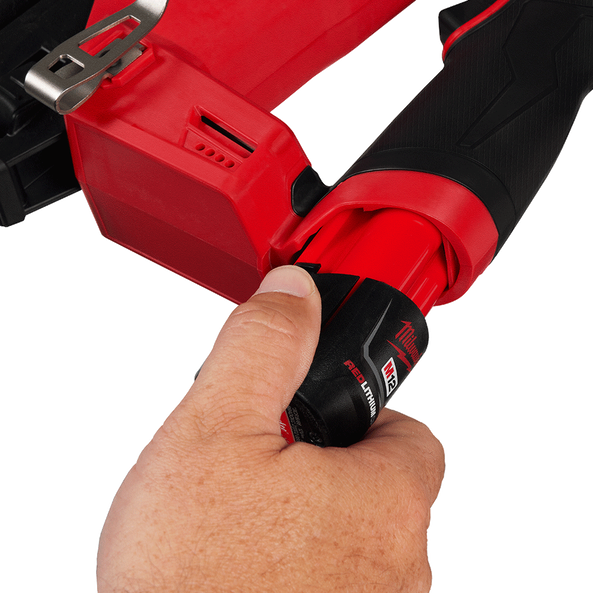

Fires over 700 nails per charge on an M12™ REDLITHIUM™ 2.0Ah Compact Battery (M12B2)
Compatible with nails that have a length of 15 mm - 38 mm (5/8" - 1-1/2")

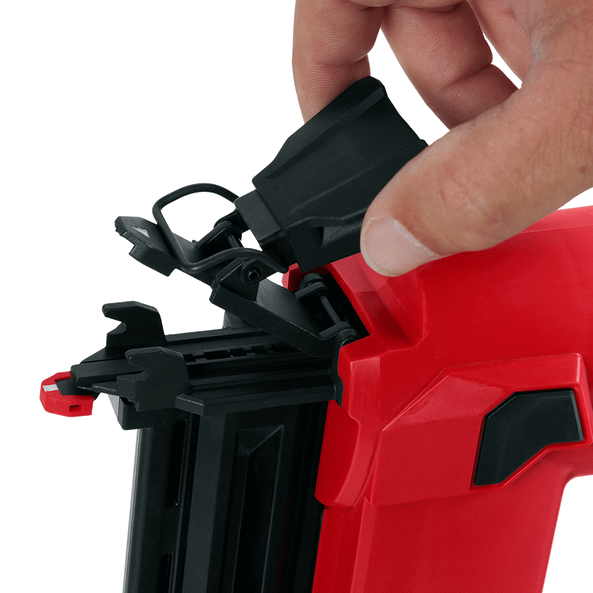

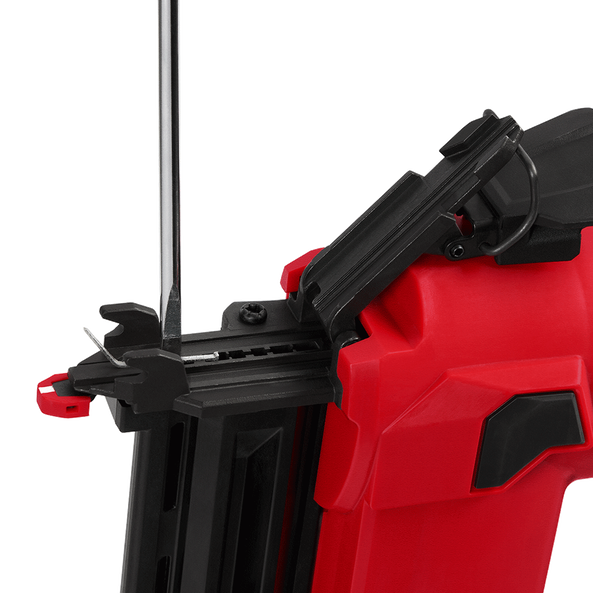

Tool free jam clearing latch and depth adjustment

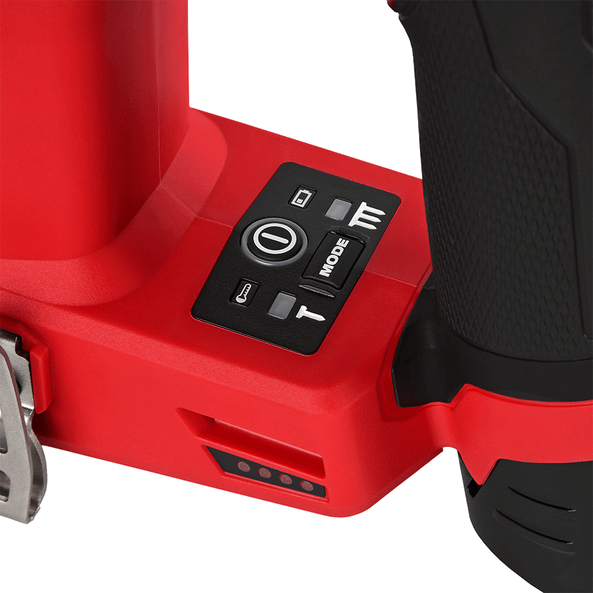

Sequential and Contact (Bump) Actuation
Workpiece contact tip storage
Reversible belt hook
Zero ramp-up time with no delay between trigger pull and nail fire
LED work light illuminates the work surface for optimal placement of nails
Dry fire lockout prevents the tool from being fired when no nails are left in the magazine

Product Summary

The M12 FUEL™ 18 Gauge Compact Brad Nailer delivers peak productivity at the jobsite, providing users with unmatched nailing performance and access to tight spaces with its compact, lightweight, ergonomic design. Leveraging a nitrogen air spring mechanism, this brad nailer enables users to sink 15mm – 38mm (5/8” – 1-1/2”) brad nails to the proper depth in both hard and soft materials while leaving clean, consistent nail holes. Because of the compact design, the M12 FUEL™ 18 Gauge Compact Brad Nailer delivers the most access of Milwaukee® cordless brad nailers, with the lightest weight at only 1.9kg. When paired with an M12™ REDLITHIUM™ 2.0Ah Compact Battery (M12B2), the M12 FUEL™ 18 Gauge Compact Brad Nailer can fire over 700 nails from a single charge. For additional run time, the M12 FUEL™ 18 Gauge Compact Brad Nailer is fully compatible with all Milwaukee® M12™ REDLITHIUM™ Batteries.

Overview Specifications What's Included Resources Reviews

Specifications

Platform M12 FUEL™
Voltage 12V
Nail Diameter 1.2mm
Nail Size 18 GA
Magazine Capacity 110

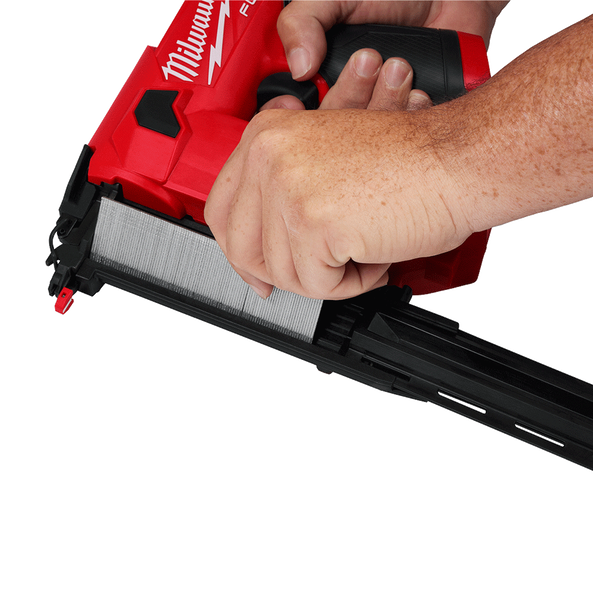

Magazine Loading Style Side Load
Firing Modes Sequential & Contact Actuation
Weight 1.9kg
Warranty - Tool 5 Years
Nail Length 15mm - 38mm (5/8" - 1-1/2")
Fill Pressure 81 psi

What's Included

M12 FUEL™ 18 Gauge Compact Brad Nailer
M12FCN18GS0C
X1
Carrying Case
X1
